QS-1200A
QS-1200A Low-Position Automatic Cuber System
One operator, about 3,800 pallets per shift. Separates, arranges and stacks cured blocks into 1,000–1,200 mm square stacks.
- 2 patents
View details
Automatic Cuber & Palletizing Systems
Six cuber systems covering every real situation: stacking in the workshop, stacking in the yard, stacking without pallets, and stacking with forklift holes already built in. All of them work with any brand or model of block machine, including retrofits onto lines that are already running.
Models in this family (6)
QS-1200B
QS-1200B Self-Retaining Hole High-Level Cuber System
Leaves the forklift holes in the stack itself, no pallet needed downstream, and the original line keeps working normally.
- 2 patents
View details
QS-1000G-A

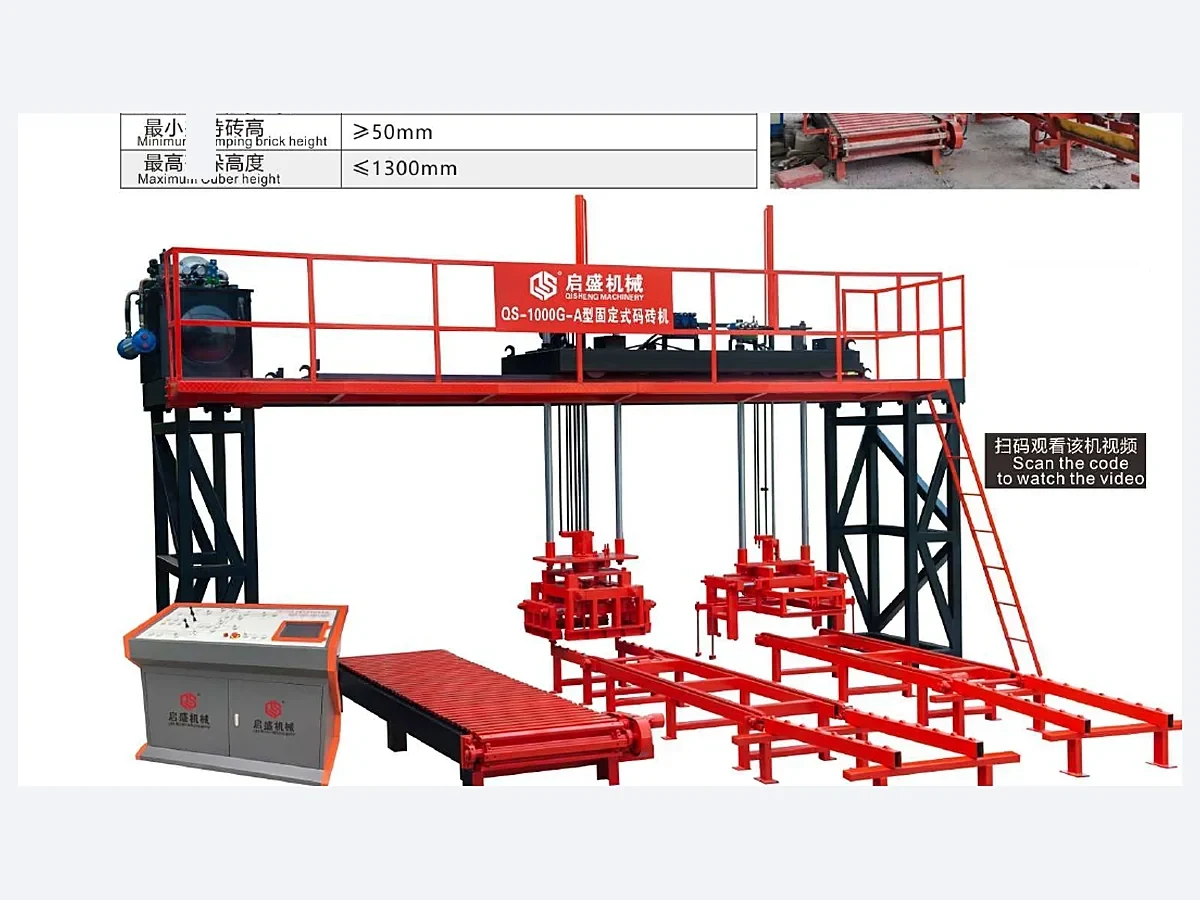

QS-1000G-A Fixed Brick Cuber Machine
Fixed inside the workshop, dual independent hydraulic circuits, brick clamp and pallet clamp working at the same time.
- 1 patent
View details
QS-1000G-B

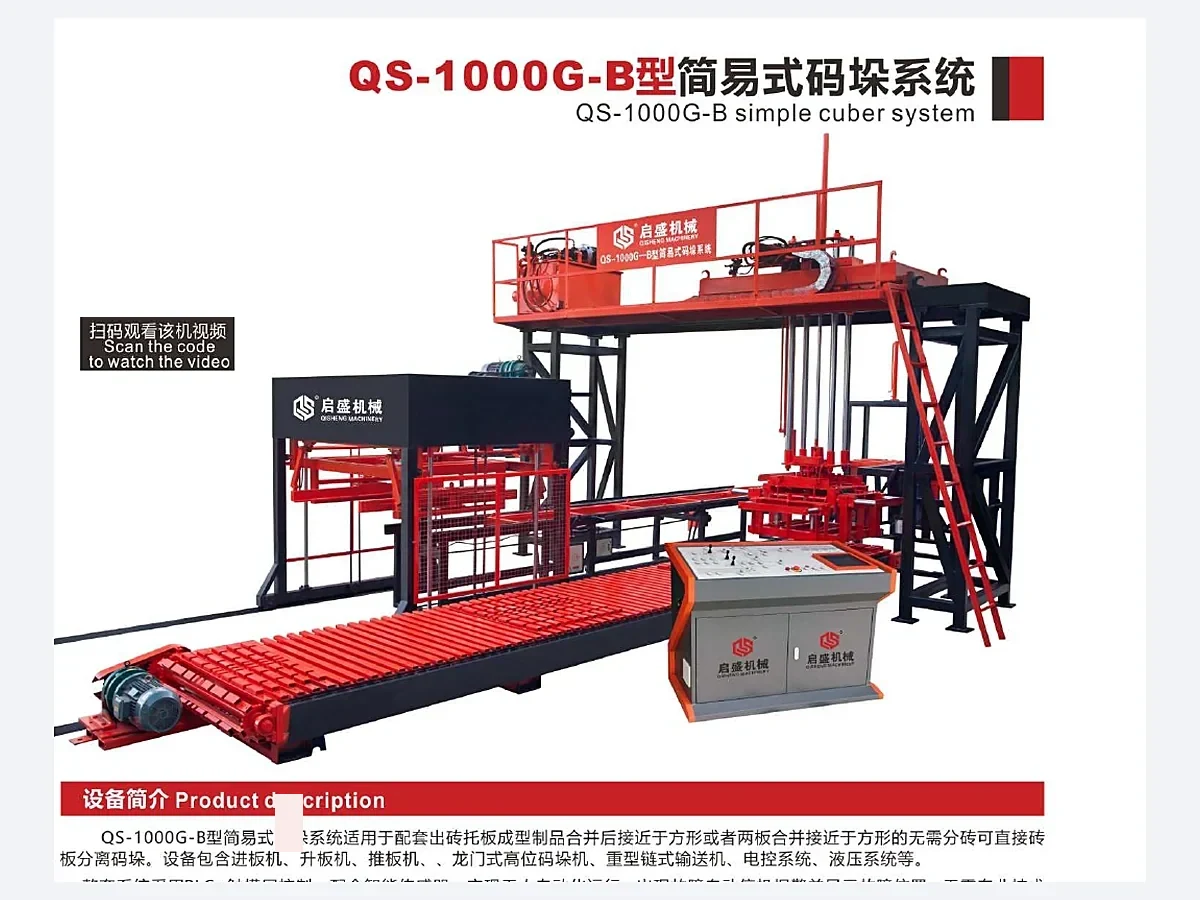

QS-1000G-B Simple Cuber System
Direct brick-pallet separation with no brick dividing, about 16 seconds per layer, 2,000 pallets per shift.
View details
QS-1000G-C

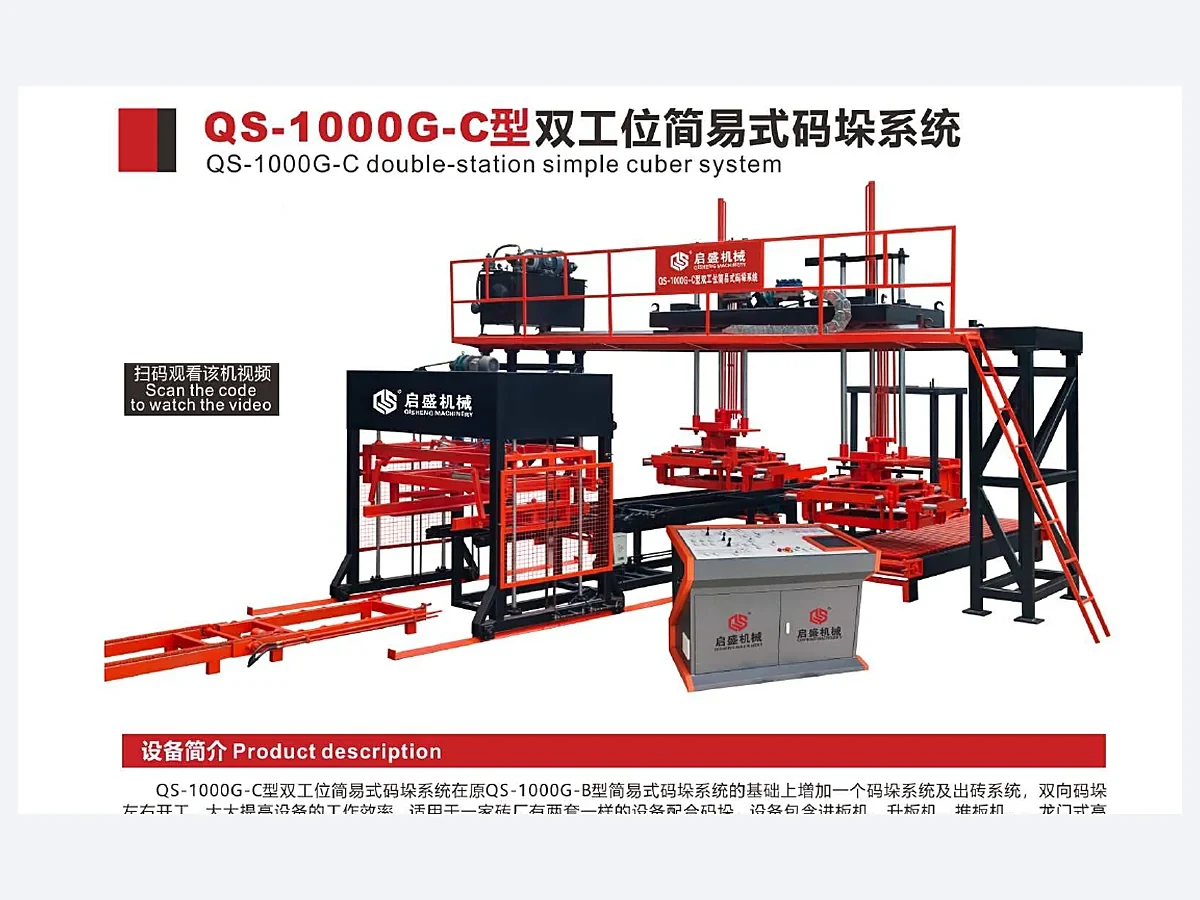

QS-1000G-C Double-Station Simple Cuber System
Two-way cubing, left and right, about 13 seconds per layer and roughly double the output of the single-station version.
View details
QS-1000Y
QS-1000Y Mobile Brick Cuber Machine
Crawler-mounted and remote controlled, cube wherever the bricks are, up to 20 layers of solid brick in one pass.
View details
Frequently Asked Questions
How much labour does a cuber actually replace?
Manual stacking of cured blocks typically takes three to five people per shift at high effort. A single-operator cuber system replaces that, and a double-station system can cover a plant that would otherwise need eight or nine stackers. Most customers calculate payback in labour terms alone in under two years.
Will it fit my existing line?
The QS-1200A, QS-1200B and QS-1000G series are specifically designed to dock onto an existing line without changing your equipment configuration or workflow. Send us photographs of your current discharge conveyor and the pallet size and we will confirm the interfaces.
What does "pallet-free" actually save?
The pallet fleet itself, the pallet-return conveyor, the forklift hours spent shuttling pallets, and the ongoing replacement of broken pallets. In a medium plant that is usually thousands of pallets and a full-time forklift you no longer need to buy or run.
Tell us about your project
Tell us the products, the target output and your raw materials, and we will send a machine list, a layout drawing and a quotation.
Quanzhou Qisheng Machinery Manufacturing Co., Ltd. · jinsenjiu@gmail.com · WhatsApp
Other product families
Fully Automatic Production Lines
Turn-key concrete block and brick plants, from batching and mixing to curing, cubing and automatic packaging. Suitable for pavers, hollow blocks, imitation stone (PC) bricks, kerb stones and thin-wall insulation blocks.
Fully Automatic Block Making Machines
Vibration-press block machines from QST6-15 up to QST1800, including servo-driven and pallet-free wet-block types. One machine, many products, change the mould, change the product.
Automatic Hydraulic Brick Pressing Machines
Static (hydraulic) pressing machines for high-strength solid bricks, pavers and shaped products. Single-direction and double-direction pressing, pallet-free options available.
Gypsum / AAC / Lightweight Panel Lines
Semi-dry gypsum block lines, AAC block intelligent hole-leaving cuber lines and lightweight composite wall panel equipment, for factories diversifying into higher-value building materials.
Packaging & Auxiliary Equipment
Automatic balers, wrapping machines, forklift clamps, pallet feeders, planetary mixers and batching machines, everything around the block machine.
