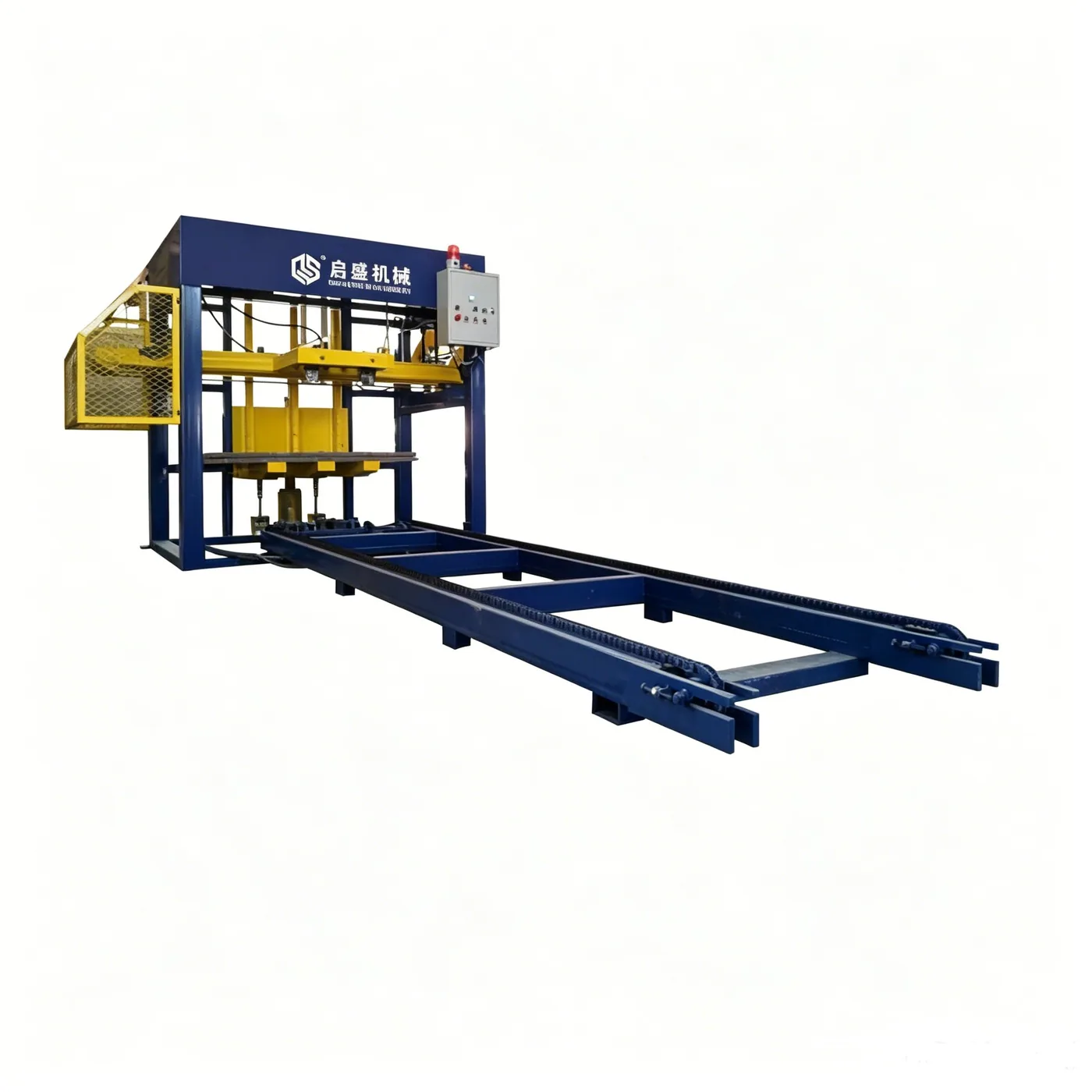

QS-1200 Automatic Pallet Feeder

Product Description

<h2>What It Does in the Line</h2><p>In a block plant the pallets have to arrive at the moulding machine at the same rate as the finished product leaves it. If boards run short, the machine stops; if they pile up, they clutter the aisle. The QS-1200 sits at that point. It takes neatly stacked empty pallets and feeds them into the storage bin in step with the rhythm of the main machine, so the supply stays level instead of arriving in bursts.</p><h2>PLC and Hydraulic Drive</h2><p>The unit pairs a PLC with a hydraulic drive. The PLC watches the demand of the pallet storage bin and controls the speed and position of each delivery, which keeps pallets dropping into the right place and avoids the jams and broken boards that come from rough handling. The hydraulic circuit supplies the power for steady movement, and it works alongside the control system rather than against it. Because the logic and the drive are separated, the feeder lines up with moulding machines of different makes and becomes part of one automated workflow rather than a stand-alone station. The hydraulic drive also removes the shock loading that a pneumatic pusher brings, so pallet edges survive the trip and the bin needs less tidying between cycles.</p><h2>Rated Data</h2><p>The machine measures about 3300 x 1700 x 2100 mm and weighs about 1300 kg. Total power is 3 kW, which is light for the duty it performs. The bin holds three stacks of pallets, and one delivery cycle takes about 13 seconds. Those figures let a plant check the feeder against its own line speed: at roughly 13 seconds per cycle the supply keeps up with lines whose pallet consumption matches that rhythm.</p><h2>Labour and Line Balance</h2><p>Feeding pallets by hand is heavy, repetitive work, and it also creates its own errors, from pallets placed crooked to minor injuries during lifting. Automating the task removes that exposure and moves the crew to tasks that need judgement. It also smooths the whole line, because a steady pallet supply removes one of the most common reasons a moulding machine pauses. For factories counting labour cost per brick, the saving shows up quickly. Plants running two shifts often find the feeder pays for itself through the operators it releases from the loading point, since one man can then cover the yard instead of standing at the bin.</p>
